Traditional Sacred Om & Kalash Double Gate – CNC Laser / Plasma Cut Vector Design Set (DXF / SVG / CDR)

Auspicious double-leaf main entrance gate vector cutting set featuring sacred "ॐ" (Om) emblems, traditional Purna Kalash vase motifs with floral sprouts, modern horizontal slat framing, and upper transom ventilation grilles. Production-ready for CNC fiber laser, plasma, and waterjet machines.

₹99₹49980% off
You save ₹400
Inclusive of all taxes
In stock
Easy Returns
Cash on Delivery
Genuine Products
Quantity
Order on WhatsApp
Share this product
Sold ByDxfkartView Store

Product Details

Bring sacred beauty and modern architectural durability to residential entryways with this auspicious double-leaf gate vector package. Designed specifically for stainless steel (SS) and mild steel (MS) gate fabricators, this layout balances spiritual symbolism with contemporary linear styling.

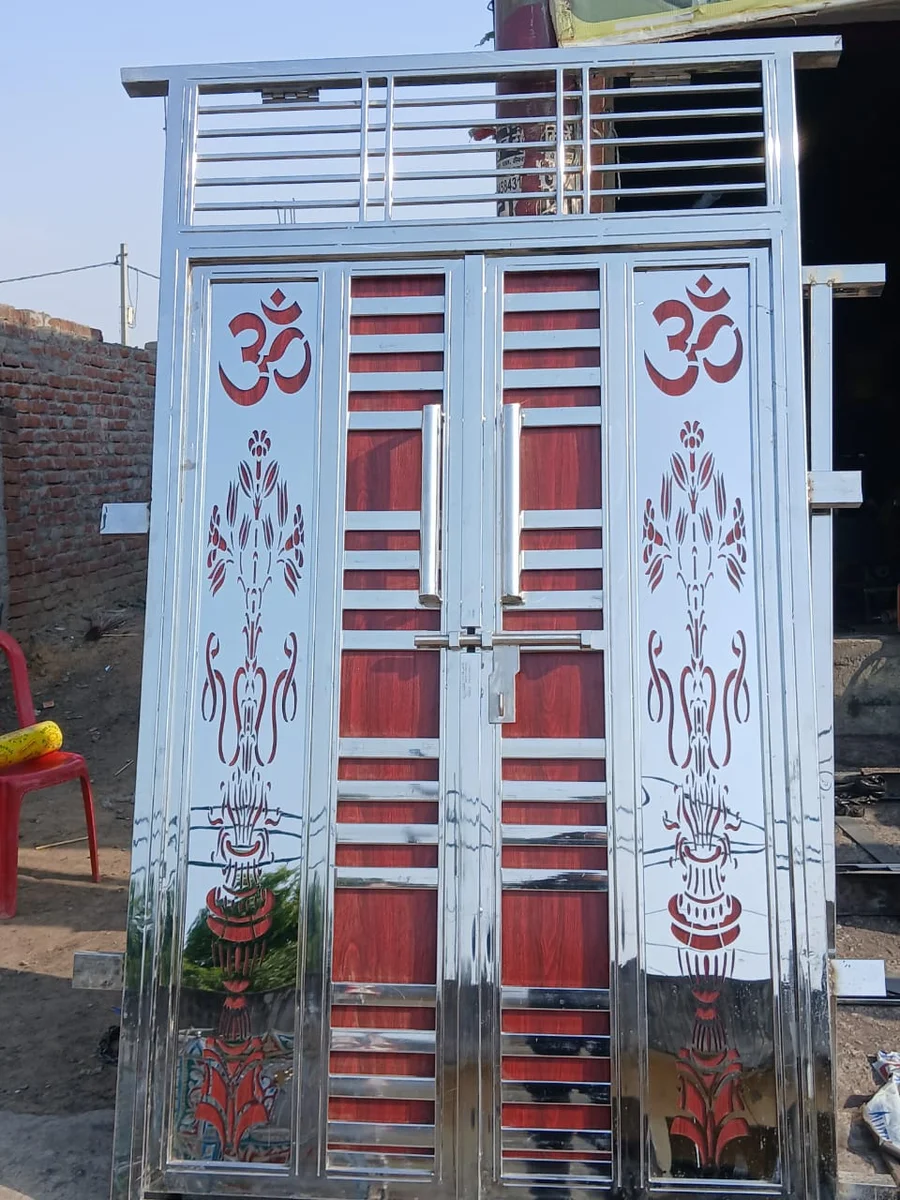

The set includes symmetrical left and right panels featuring top sacred "ॐ" (Om) symbols rising above ornate Purna Kalash (ceremonial urn/vase) motifs with rising lotus and floral tendrils. The outer panels are bordered by inner sections ready for horizontal pipe slats or wood-finish HPL/WPC sheet inserts, capped by a matching horizontal louver transom. Every vector cut line is pre-bridged to prevent dropouts, keep sheets rigid, and support high-contrast backing materials (such as wood-grain ACP/HPL sheets or colored acrylic).

  • File Formats Included: DXF, DWG, SVG, CDR, AI, EPS, PDF

  • Included Vector Elements:

    • Sacred "ॐ" (Om) Calligraphy Crests (Left & Right)

    • Traditional Kalash / Floral Sprout Vertical Art Panels (Symmetrical Set)

    • Top Transom Horizontal Louver Layout Template

    • Inner Section Infill & Horizontal Slat Template Layout

  • Recommended Materials: Stainless Steel (Grade 202/304 in Mirror or Hairline Finish), Mild Steel (MS), Galvanized Iron (GI), or Aluminum

  • Recommended Sheet Thickness: 1.5 mm to 3.0 mm sheet inserts, designed to integrate into standard square or rectangular hollow section (SHS/RHS) steel pipe frames

  • Backing Infill Compatibility: Perfect for pairing with red mahogany / teak wood-finish HPL sheets, ACP sheets, or frosted acrylic backer boards for dual-tone contrast

  • Scalability: 1:1 vector scale; easily rescaled in AutoCAD, CorelDRAW, or LightBurn to match custom door dimensions (e.g., 6×7 ft, 7×7 ft, 8×8 ft, 8×10 ft with transom)

  • Applications: Residential front gates, villa double entrance doors, bungalow main swing doors, temple boundary gates

  • Digital Download: Instant production-ready vector download; zero open contours or overlapping paths
