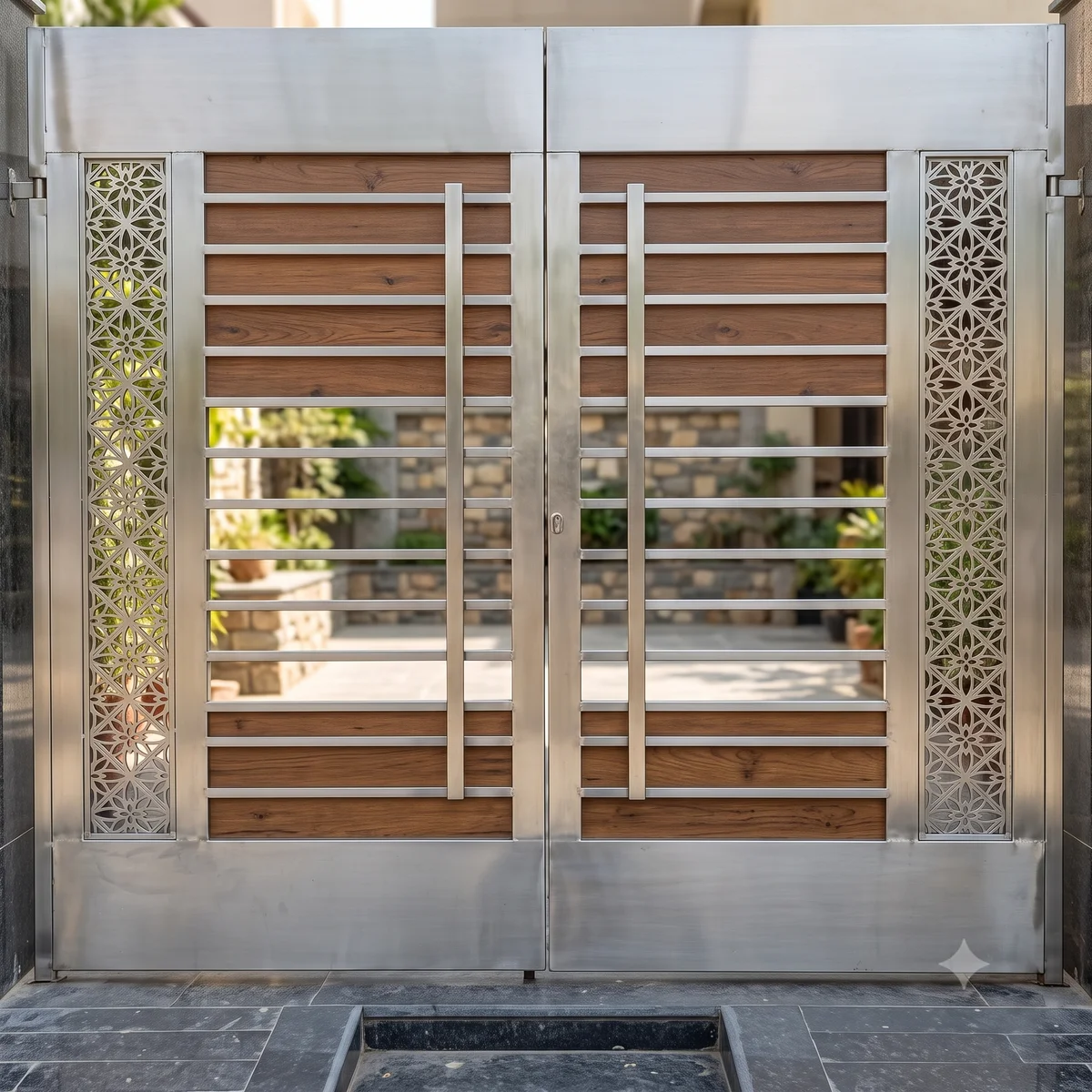

Modern Stainless Steel & Wood Finish Double Entrance Gate with Floral Jali Border Panels – CNC Laser Cut Vector Design (DXF / SVG / CDR)

Contemporary double-leaf entrance gate vector design featuring horizontal wood slat sections, central see-through security bars, tall vertical pull handles, and outer floral lattice (jali) cut strips. Production-ready for CNC fiber laser, plasma, and waterjet fabrication.

₹149₹49970% off
You save ₹350
Inclusive of all taxes
In stock
Easy Returns
Cash on Delivery
Genuine Products
Quantity
Order on WhatsApp
Share this product
Sold ByDxfkartView Store

Product Details

Upgrade residential and villa entrances with this high-end stainless steel and wood composite double gate design. The layout combines solid brushed steel top and bottom headers, warm horizontal teak-finish plank inserts, open vision grille bars, and full-height floral lattice jali cut strips flanking the outer edges.

Engineered specifically for steel fabricators and CNC workshops, the floral jali vector files feature closed toolpaths and balanced bridge tabs to ensure clean piercings, prevent metal sheet warping, and allow seamless integration into box pipe frames and composite panel backings.

  • File Formats Included: DXF, DWG, SVG, CDR, AI, EPS, PDF

  • Included Vector Elements:

    • Full 2-Leaf Symmetrical Double Gate Layout (Left & Right leaves)

    • Vertical Floral Geometric Jali Cut Border Strips

    • Horizontal Slat & Vision Bar Spacing Fabrication Blueprint

    • Vertical Square Tube Pull Handle Mounting Template

  • Recommended Materials: Stainless Steel (Grade 304/316 in Brushed Hairline or Satin Finish), Mild Steel (MS), Aluminum, paired with WPC/HPL exterior wood-grain sheets

  • Recommended Sheet Thickness: 1.5 mm to 3.0 mm for laser-cut floral jali side panels; outer frame fabricated using standard rectangular/square hollow section (RHS/SHS) stainless steel tubing

  • Scalability: 1:1 vector scale; easily rescalable in AutoCAD, CorelDRAW, or LightBurn to match custom entrance openings (e.g., 8×8 ft, 10×8 ft, 12×8 ft)

  • Applications: Modern residential entrance gates, luxury villa swing/sliding gates, courtyard double doors, bungalow main gates

  • Digital Download: Instant production-ready vector download; zero open contours or overlapping lines
